型號 參數	IUA4200KMA
型號 參數	420萬像素 1.2” CMOS USB3.0工業相機
相機
傳感器型號	GPixel GSENSE2020e (NIR)
像元尺寸	6.5 µm x 6.5 µm
靶面尺寸	1.2”
幀率&分辨率	45fps@2048 x 2048、45fps@1024 x 1024
轉換增益	HCG: 0.83 / LCG: 5.23 / HDR: 0.70 (e-/ADU)
讀出噪聲	HCG: 6.19 / LCG: 37.48 / HDR: 2.80 (e-)
滿井電荷	HCG: 13.5 / LCG: 85.7 / HDR: 46.0 (ke-)
動態范圍	HCG: 66.5 / LCG: 67.0 / HDR: 84.0 (dB)
信噪比	HCG: 41.3 / LCG: 49.3 / HDR: 46.6 (dB)
靈敏度	8.1x10⁷(e-/((W/m2).s))

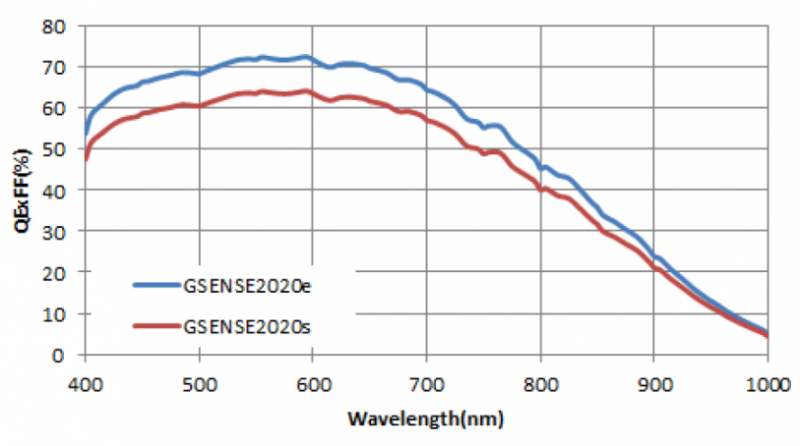

Peak QE	73%@595nm
暗電流	13e-/s/pix
增益范圍	1-8倍
曝光時間范圍	21us-60sec
快門模式	卷簾快門
Binning模式	硬件2x2；軟件2x2，3x3，4x4
數據接口	USB3.0（USB3.1 GEN1）
數字IO	1路光耦隔離輸入，1路光耦隔離輸出，2路非隔離輸入輸出口
數據格式	8bit / 12bit / HDR16
一般規范
供電方式	USB3.0接口供電 / DC12V供電
功耗	<2.3W
溫度	工作溫度-10~50℃，儲藏溫度-30~70℃
濕度	20%-80%無冷凝
尺寸	68mmx68mmx28.1mm
重量	270g
鏡頭接口	C接口
軟件	完整的SDK開發包/ToupView
操作系統	Win32/WinRT/Linux/macOS/Android
認證	CE，F(xiàn)CC

訂購代碼	傳感器型號與尺寸	像素(μm)	G光靈敏度暗電流	FPS/分辨率	采樣平均	曝光時間
IUA390KMA	0.39IMX287LLR(M,GS) 1/2.9“ (4.97x3.73)	6.9x6.9	7320mv with 1/30s 0.76mv with 1/30s	101.5fps@720×540	1x1	6us~15s
IUA503KMA	0.5M/IMX426LLJ(M,GS) 1/1.7“ (7.2x5.58)	9.0x9.0	8100mv with 1/30s 0.3mv with 1/30s	79.8fps@800×620	1x1	6us~15s
IUA503KMB	0.5M/IMX433LLJ(M,GS) 1/1.7“ (7.2x5.58)	9.0x9.0	8100mv with 1/30s 0.3mv with 1/30s	79.8fps@800×620	1x1	6us~15s
IUA1500KMA	1.5M/IMX273LLR(C,GS) 1/2.9“ (4.97x3.73)	3.45×3.45	1830mv with 1/30s 0.15mv with 1/30s	235.5fps@1440×1080 523fps@720×540	1x1 1x1	15us~15s
IUA1500KPA	1.5M/IMX273LQR(C,GS) 1/2.9“ (4.97x3.73)	3.45×3.45	1146mv with 1/30s 0.15mv with 1/30s	235.5fps@1440×1080 523fps@720×540	1x1 1x1	15us~15s
IUA1700KMA	1.7M/IMX432LLJ(M,GS) 1.1“ (14.4x9.9)	9.0x9.0	8100mv with 1/30s 0.3mv with 1/30s	98.6fps@1600×1100	1x1	6us~15s
IUA1700KPA	1.7M/IMX432LQJ(C,GS) 1.1“ (14.4x9.9)	9.0x9.0	4910mv with 1/30s 0.3mv with 1/30s	98.6fps@1600×1100	1x1	6us~15s
IUA1700KMB	1.7M/IMX425LLJ(M,GS) 1.1“ (14.4x9.9)	9.0x9.0	8100mv with 1/30s 0.3mv with 1/30s	210fps@1600×1100	1x1	6us~15s
IUA1700KPB	1.7M/IMX425LQJ(C,GS) 1.1“ (14.4x9.9)	9.0x9.0	4910mv with 1/30s 0.3mv with 1/30s	210fps@1600×1100	1x1	6us~15s
IUA2300KMA	2.3M/IMX174LLJ(M,GS) 1/1.2“ (11.25x7.03)	5.86x5.86	1650mv with 1/30s 0.15mv with 1/30s	164.5fps@1920×1200	1x1	15us~15s
IUA2300KPA	2.3M/IMX174LQJ(C,GS) 1/1.2“ (11.25x7.03)	5.86x5.86	1016mv with 1/30s 0.15mv with 1/30s	164.5fps@1920×1200	1x1	15us~15s
IUA2300KMB	2.3M/IMX249LLJ(M,GS) 1/1.2“ (11.25x7.03)	5.86x5.86	1650mv with 1/30s 0.15mv with 1/30s	30fps@1920×1200	1x1	42us~15s
IUA2300KPB	2.3M/IMX249LQJ(C,GS) 1/1.2“ (11.25x7.03)	5.86x5.86	1016mv with 1/30s 0.15mv with 1/30s	30fps@1920×1200	1x1	42us~15s
IUA2800KMA	2.8M/IMX421LLJ(M,GS) 2/3“ (8.71x6.59)	4.5x4.5	3354mv with 1/30s 0.15mv with 1/30s	121fps@1936×1464 425fps@968×732	1x1 1x1	6us~15s
IUA2800KPA	2.8M/IMX421LQJ(C,GS) 2/3“ (8.71x6.59)	4.5x4.5	2058mv with 1/30s 0.15mv with 1/30s	121fps@1936×1464 425fps@968×732	1x1 1x1	6us~15s
IUA5000KMA	5.0M/IMX264LLR(M,GS) 2/3“ (8.45x7.07)	3.45×3.45	1830mv with 1/30s 0.15mv with 1/30s	35.6fps@2448×2048 87.6fps@1224×1024	1x1 1x1	15us~15s
IUA5000KPA	5.0M/IMX264LQR(C,GS) 2/3“ (8.45x7.07)	3.45×3.45	1146mv with 1/30s 0.15mv with 1/30s	35.6fps@2448×2048 87.6fps@1224×1024	1x1 1x1	15us~15s
IUA5100KMA	5.1M/ IMX547-AAMJ-C(M,GS) 1/1.8“(6.71x5.61)	2.74x2.74	2252mv with 1/30s 0.15mv with 1/30s	63fps@2448×2048 208.4fps@1224×1024	1x1 2x2	30us~15s
IUA5100KPA	5.1M/ IMX547-AAQJ-C(C,GS) 1/1.8“(6.71x5.61)	2.74x2.74	1337mv with 1/30s 0.15mv with 1/30s	63fps@2448×2048 159fps@1224×1024	1x1 2x2	30us~15s
IUA6300KMA	6.3M/IMX178LLJ(M,RS) 1/1.8“ (7.37x4.92)	2.4x2.4	760mv with 1/30s 0.15mv with 1/30s	59.9fps@3072×2048 59.9fps@1536×1024	1x1 2x2	17us~15s
IUA6300KPA	6.3M/IMX178LQJ(C,RS) 1/1.8“ (7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	59.8fps@3072×2048 59.5fps@1536×1024	1x1 2x2	17us~15s
IUA7100KMA	7.1M/IMX428LLJ(M,GS) 1.1“ (14.4x9.9)	4.5x4.5	3354mv with 1/30s 0.15mv with 1/30s	51.3fps@3200×2200 133.8fps@1584×1100	1x1 1x1	6us~15s
IUA7100KPA	7.1M/IMX428LQJ(C,GS) 1.1“ (14.4x9.9)	4.5x4.5	2058mv with 1/30s 0.15mv with 1/30s	51.4fps@3200×2200 133.8fps@1584×1100	1x1 1x1	6us~15s
IUA8000KMB	8.0M/IMX546-AAMJ(M,GS) 2/3“ (7.78x7.78)	2.74x2.74	2649mv/lx/s 0.25mv with 1/30s	41fps@2840x2840 118fps@1420x1420	1x1 1x1	30us~15s
IUA8000KPB	8.0M/IMX546-AAQJ(C,GS) 2/3“ (7.78x7.78)	2.74x2.74	1574mv/lx/s 0.15mv with 1/30s	41fps@2840x2840 118fps@1420x1420	1x1 1x1	30us~15s
IUA8300KPA	8.3M/IMX485LQJ-C(C,RS) 1/1.2“ (11.14x6.26)	2.9x2.9	2188mv with 1/30s 0.15mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA8300KMB	8.3M/IMX585-AAMJ1-C(M,RS) 1/1.2“ (11.14x6.26)	2.9x2.9	19120mv with 1/30s 0.13mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA8300KPB	8.3M/IMX585-AAQJ1-C(C,RS) 1/1.2“ (11.14x6.26)	2.9x2.9	5970mv with 1/30s 0.13mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA8300KME	8.3M/IMX678-AAMR1-C(M, RS) 1/1.8“ (7.68x4.32)	2.0x2.0	11288mv with 1/30s 0.15mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA8300KPE	8.3M/IMX678-AAQR1-C(C, RS) 1/1.8“ (7.68x4.32)	2.0x2.0	3541mv with 1/30s 0.15mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA10300KPA	10.3M/IMX294(C,RS) 4/3 “(9.56x6.5)	2.315x2.315	419mv with 1/30s 0.12mv with 1/30s	30.0@4128x2808 38.5 @4096x2160 59.8@2048x1080 87.2@1360x720 8 Bit / 14 Bit	1x1 1x1 2x2 3x3	150us~15s
IUA12000KPA	12M/IMX676-AACR1-C(C,RS) 1/1.6“ (7.07x7.07)	2.0x2.0	3637mv 0.15mv with 1/30s	27@3536x3536 60@1768x1768	1x1 2x2	30us~15s
IUA12300KMA	12.3M/IMX545-AAMJ-C(M,GS) 1/1.1“(11.22x8.22)	2.74x2.74	2252mv with 1/30s 0.15mv with 1/30s	28.2fps@4096x3000 100.9fps@2048x1500 100.9fps@1024x750	1x1 2x2 4x4	30us~15s
IUA12300KPA	12.3M/IMX545-AAQJ-C(C, GS) 1/1.1“(11.22x8.22)	2.74x2.74	1337mv with 1/30s 0.15mv with 1/30s	28.2fps@4096x3000 100.9fps@2048x1500 100.9fps@1024x750	1x1 2x2 4x4	30us~15s
IUA12300KMB	12.3M/IMX304LLR-C(M,GS) 1.1“(14.13x10.35)	3.45×3.45	1830mv with 1/30s 0.15mv with 1/30s	23.4fps@4096x3000 46.3fps@2048x1500 46.3fps@1024x750	1x1 2x2 4x4	30us~15s
IUA12300KPB	12.3M/IMX304LQR-C(C, GS) 1.1“(14.13x10.35)	3.45×3.45	1146mv with 1/30s 0.15mv with 1/30s	23.4fps@4096x3000 46.3fps@2048x1500 46.3fps@1024x750	1x1 2x2 4x4	30us~15s
IUA20000KMA	20.0M/IMX183CLK(M,RS) 1“ (13.06x8.84)	2.4x2.4	777mv with 1/30s 0.2mv with 1/30s	19.0fps@5440×3684 49.9fps@2736×1824 59.5fps@1824×1216	1x1 2x2 3x3	53us~15s
IUA20000KPA	20.0M/IMX183CQK(C,RS) 1“ (13.06x8.84)	2.4x2.4	462mv with 1/30s 0.2mv with 1/30s	19.0fps@5440×3684 48.8fps@2736×1824 59.4fps@1824×1216	1x1 2x2 3x3	53us~15s
IUA20400KMA	20.4M/IMX541-AAMJ-C(M,GS) 1.1“ (12.32x12.32)	2.74x2.74	2649mv with 1/30s 0.15mv with 1/30s	17.5fps@4496×4496 64.4fps@2240×2240 64.4fps@1120×1120	1x1 2x2 4x4	30us~15s
IUA20400KPA	20.4M/IMX541-AAQJ-C(C,GS) 1.1“ (12.32x12.32)	2.74x2.74	1574mv with 1/30s 0.15mv with 1/30s	17.5fps@4496×4496 64.4fps@2240×2240 64.4fps@1120×1120	1x1 2x2 4x4	30us~15s
IUA24500KMA	24.5M/IMX540-AAMJ-C(M,GS) 1.2“(14.58x12.60)	2.74x2.74	2649mv with 1/30s 0.15mv with 1/30s	14.7fps@5320×4600 54.3fps@2660×2300	1x1 2x2 4x4	30us~15s
IUA24500KPA	24.5M/IMX540-AAQJ-C(C,GS) 1.2“(14.58x12.60)	2.74x2.74	1574mv with 1/30s 0.15mv with 1/30s	14.7fps@5320×4600 54.4fps@2660×2300	1x1 2x2 4x4	30us~15s
IUA25000KMA	25M/GMAX0505(M, GS) 1.1“ (12.8x12.8)	2.5x2.5	QE@500nm: 65.8% 2.4e-/pixel/s	13fps@5120×5120 27fps@2560×2560 54fps@1280×1280	1x1 2x2 4x4	15us~15s
IUA25000KPA	25M/GMAX0505(C, GS) 1.1“ (12.8x12.8)	2.5x2.5	QE@520nm: 58.0% 2.4e-/pixel/s	13fps@5120×5120 27fps@2560×2560 54fps@1280×1280	1x1 2x2 4x4	15us~15s
IUA45000KMA	45M/IMX492LLJ-C(M,RS) 1.4“ (19.11x13.00)	2.315x2.315	176mv with 1/30s 0.03mv with 1/30s	8.1@8176x5616 30.0@4080x2808 8.1@7408x5556 33.0@3696x2778 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1360x720	1x1 2x2 1x1 2x2 1x1 2x2 3x3 4x4	100us~15s
IUA45000KPB	45M/IMX492LQJ-C(C,RS) 1.4“ (19.11x13.00)	2.315x2.315	176mv with 1/30s 0.03mv with 1/30s	8.1@8176x5616 8.1@7408x5556 10.4@8176x4320	1x1 2x2 1x1 2x2 1x1 2x2 3x3 4x4	100us~15s
IUA-特別波段（UV， NIR，9款）
IUA2100KPA (NIR)	2.1M/IMX462LQR(C,RS,NIR) 1/2.8“ (5.57x3.13)	2.9x2.9	2376mv with 1/30s 0.15mv with 1/30s	120.3fps@1920x1080	1x1	11us~15s
IUA4100KPA (NIR)	4.1M/IMX464LQR(C,RS,NIR) 1/1.8“ (7.8x4.41)	2.9x2.9	2376mv with 1/30s 0.15mv with 1/30s	90fps@2688x1520	1x1	11us~15s
IUA500KMA (GPixel UV)	0.5M/GLUX1605BSI(M,UV,RS) 1“(12.8x9.6)	16x16	6.4x108(e-/((W/m2).s)) QE91%@550nm 50(e-/s/pix)	60fps@800×600 60fps@400×300	1x1 2x2	27us~60s
IUA1300KMA (GPixel UV)	1.3M/GLUX9701BSI(M,UV,RS) 1“(12.49x9.99)	9.76x9.76	2.57x108(e-/((W/m2).s)) QE89%@610nm 40(e-/s/pix)	30fps@1280×1024 30fps@640×512	1x1 2x2	63us~60s
IUA4200KMA (GPixel NIR)	4.2M/GSENSE2020e(M,NIR,RS) 1.2“(13.31x13.31)	6.5x6.5	8.1x107(e-/((W/m2).s)) QE73%@595nm 13(e-/s/pix)	45fps@2048×2048 45fps@1024×1024	1x1 2x2	21us~60s
IUA4200KPA (GPixel NIR)	4.2M/GSENSE2020s(C,NIR,RS) 1.2“(13.31x13.31)	6.5x6.5	8.1x107(e-/((W/m2).s)) QE64%@595nm 13(e-/s/pix)	45fps@2032×2046 45fps@1008×1022	1x1 2x2	50us~3600s
IUA4200KMB (GPixel UV)	4.2M/GSENSE2020BSI(M,UV,RS) 1.2“(13.31x13.31)	6.5x6.5	1.1x108(e-/((W/m2).s)) QE93.7%@550nm 80(e-/s/pix)	32fps@2048×2048 32fps@1024×1024	1x1 2x2	12us~60s
IUA4200KME (GPixel UV)	4.2M/GSENSE400BSI(M,UV,RS) 2.0“(22.53x22.53)	11.0x11.0	3.25x108(e-/((W/m2).s)) QE95.3%@560nm 345(e-/s/pix)	37fps@2048×2048 37fps@1024×1024	1x1 2x2	21us~60s
IUA8000KMA (GS-UV)	8.0M/IMX487-AAMJ(M,UV,GS) 2/3“ (7.78x7.78)	2.74x2.74	145mv with 1/30s 0.15mv with 1/30s	45fps@2840×2840 198fps@1420×1420	1x1 2x2	30us~15s
訂購代碼	傳感器型號與尺寸	像素(μm)	G光靈敏度暗電流	FPS/分辨率	采樣平均	曝光時間

IUA4200KMA GPixel GSENSE2020e 近紅外相機 420萬

*C：彩色；M：黑白；UV：紫外；RS：卷簾快門；GS：全局快門；NIR：近紅外提升。

* UV相機都可去玻璃
