詳細說明
|
其他硬件參數 |
|
|---|---|
|
光譜響應范圍 |
380-650nm (有紅外截止濾光片情況下) |
|
白平衡 |
ROI 白平衡/手動Temp-Tint調整/黑白相機不提供 |
|
色彩還原技術 |
Ultra-Fine顏色處理引擎 |
|
捕獲/控制SDK |
Native C/C++,C#, DirectShow, Twain和Labview |
|
記錄方式 |
圖像和視頻(軟件或硬件觸發) |
|
制冷方式* |
雙級循環式熱電制冷系統，低于環境溫度42度以下，精準可控)(視傳感器型號略有差別) |
|
相機工作環境 |
|
|
工作溫度（攝氏度） |
-10~ 50 |
|
貯存溫度（攝氏度） |
-20~ 60 |
|
工作濕度 |
30~80%RH |
|
貯存濕度 |
10~60%RH |
|

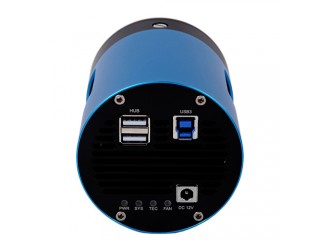

供電電源 |
相機通過USB3.0接口供電(兼容USB2.0) 制冷模塊通過外部電源供電，DC12V，3A |
|
軟件運行環境 |
|
|
操作系統 |
Microsoft® Windows® XP/ Vista / 7 / 8 /10 /11(32 & 64 位) OS X (Mac OS X) Linux |
|
計算機配置 |
CPU:Intel Core 2 2.8GHz 或更高 |
|
內存:2GB或更大 |
|
|
USB接口:USB3.0高速接口，兼容USB2.0接口 |
|
|
顯示器:17”或以上 |
|
|
CD-ROM |
|
- 明場顯微鏡；暗場，微分干涉(DIC) 顯微鏡；
- 活體細胞成像，細胞或組織病理學檢測，細胞學；
- 缺陷分析，半導體檢測，精密測量；
- 微光熒光成像，GFP或 RFP 分析，熒光原位雜交(FISH)；
- 熒光共振能量轉移顯微鏡，全內反射熒光顯微鏡，實時共聚焦顯微鏡，失效性分析，天體照相；

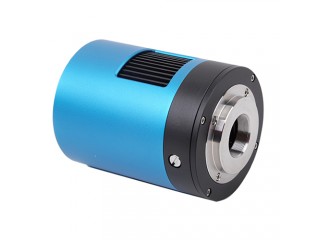

MTR3CMOS 系列相機可用于弱光或熒光圖像的拍攝，其主要應用有：
更多>本企業其它產品
|
|
|
|
|
|
|
|
0 條相關評論
魯ICP備2025151005號2016-2035 商之橋 B2B SYSTEM All Rights Reserved
型號
傳感器型號與尺寸
像素(μm)
G光靈敏度/暗電流
FPS/分辨率/位深度
采樣平均
曝光時間
MTR3CMOS45000KMA
45M/IMX492(M, RS)
1.4”(19.11x13.00)
2.315 x2.315
351mV with 1/30s
0.12mV with 1/30s
8.1@8176x5616
30.0@4080x2808
8.1@7408x5556
33.0@3696x2778
10.4@8176x4320
34.7@4096x2160
62.5@2048x1080
86.5@1360x720
8 Bit / 12 Bit
1x1(3:2)
2x2(3:2)
1x1(4:3)
2x2(4:3)
1x1(17:9)
2x2(17:9)
3x3(17:9)
4x4(17:9)
0.1ms~1h
MTR3CMOS26000KPA
26M/IMX571(C, RS)
1.8”(23.48x15.67)
APS-C
3.76 x3.76
485mv with 1/30s
0.07mv with 1/30s
14@6224x4168
37@3104x2084
110@2064x1386
8 Bit / 16 Bit
1x1
2x2
3x3
0.1ms~1h
MTR3CMOS26000KMA
26M/IMX571(M, RS)
1.8 ”(23.48x15.67)
APS-C
3.76 x3.76
871mv with 1/30s
0.07mv with 1/30s
14@6224x4168
37@3104x2084
110@2064x1386
8 Bit / 16 Bit
1x1
2x2
3x3
0.1ms~1h
MTR3CMOS21000KPA
21M/IMX269(C)
4/3”(17.4x13.1)
3.3 x3.3
400mv with 1/30s
0.1mv with 1/30s
17@5280x3954
17@3952x3952
56@2640x1976
67@1760x1316
192@584x438
8 Bit / 12 Bi
1x1
1x1
2x2
3x3
9x9
0.1ms~1h
MTR3CMOS20000KPA
20M/IMX183(C, RS)
1 ”(13.056x8.755)
2.4 x2.4
462mv with 1/30s
0.21mv with 1/30s
19.0@5440x3648
48.8@2736x1824
59.4@1824x1216
8 Bit / 12 Bit
1x1
2x2
3x3
0.1ms~1h
MTR3CMOS20000KMA
20M/IMX183(M, RS)
1 ”(13.056x8.755)
2.4 x2.4
388mv with 1/30s
0.21mv with 1/30s
(F8.0)
19.0@5440x3648
48.8@2736x1824
59.4@1824x1216
8 Bit / 12 Bit
1x1
2x2
3x3
0.1ms~1h
MTR3CMOS16000KPA
16M/MN34230PLJ(C)
4/3” (17.6x13.3)
3.8x3.8
2413LSB
89.1LSB
(Gain = 0dB)
6@4640x3506
20@2304x1750
48.0@1536x1160
8 Bit / 12 Bit
1x1
2x2
3x3
0.15ms~1h
MTR3CMOS16000KMA
16M/MN34230ALJ(M)
4/3” (17.6x13.3)
3.8x3.8
2650LSB
89.1LSB
(Gain = 0dB)
22.5@4648x3506
43.0@2304x1750
48.0@1536x1168
8 Bit / 12 Bit
1x1
2x2
3x3
0.15ms~1h
MTR3CMOS10300KPA
10.3M/IMX294(C)
4/3 ”(19.11x13.0)
4.63 x4.63
419mv with 1/30s
0.12mv with 1/30s
30.0@4128x2808
38.5 @4096x2160
59.8@2048x1080
87.2@1360x720
8 Bit / 14 Bit
1x1
1x1
2x2
3x3
0.15ms~1h
MTR3CMOS10300KMA
10.3M/IMX492(M, RS)
4/3 ”(19.11x13.0)
4.63 x4.63
701mv with 1/30s
0.12mv with 1/30s
30.0@4128*2808
38.5@ 4096*2160
59.8@2048*1080
87.2@1360*720
8 Bit / 14 Bit
1x1
1x1
2x2
3x3
0.15ms~1h
MTR3CMOS09000KPA
9M/IMX533(C)
1”(11.28x11.28)
3.76 x3.76
534mv with 1/30s
0.04mv with 1/30s
40@2992x3000
62@1488x1500
186@992x998
8 Bit / 14 Bit
1x1
2x2
3x3
0.1ms~1h
MTR3CMOS09000KMA
9M/IMX533(M)
1”(11.28x11.28)
3.76 x3.76
877mv with 1/30s
0.04mv with 1/30s
40@2992x3000
62@1488x1500
186@992x998
8 Bit / 14 Bit
1x1
2x2
3x3
0.1ms~1h
MTR3CMOS08300KPA
8.3M/IMX585(C, RS)
1/1.2”(11.14x6.26)
2.9x2.9
5970mv with 1/30s
0.15mv with 1/30s
45@3840x2160
70@1920x1080
8 Bit / 12 Bit
1x1
2x2
0.1ms~1h
MTR3CMOS07100KPA
7.0M/IMX428(C,GS)
1.1 ”(14.4x9.9)
4.5 x4.5
2058mv with 1/30s
0.15mv with 1/30s
51.3@3200x2200
133.8@1584x1100
8 Bit / 12 Bit
1x1
1x1
0.1ms~1h
MTR3CMOS07100KMA
7.0M/IMX428(M,GS)
1.1 ”(14.4x9.9)
4.5 x4.5
3354mv with 1/30s
0.15mv with 1/30s
51.3@3200x2200
133.8@1584x1100
8 Bit / 12 Bit
1x1
1x1
0.1ms~1h
MTR3CMOS02300KPA
2.3M/SC2110(C,RS)
1.69”(23.0x14.4)
12x12
120000 mV/lux·s @HCG
120@1920x1200
8 Bit / 12 Bit
1x1
0.1ms~1h
MTR3CMOS02300KMA
2.3M/SC2110(M,RS)
1.69”(23.0x14.4)
12x12
120000 mV/lux·s @HCG
120@1920x1200
8 Bit / 12 Bit
1x1
0.1ms~1h
MTR3CMOS01700KPA
1.7M/IMX432(C,GS)
1.1 ”(14.4x9.9)
9.0 x9.0
4910mv with 1/30s
0.3mv with 1/30s
98.6@1600x1100
8 Bit / 12 Bit
1x1
0.1ms~1h
MTR3CMOS01700KMA
1.7M/IMX432(M,GS)
1.1 ”(14.4x9.9)
9.0 x9.0
8100mv with 1/30s
0.3mv with 1/30s
98.6@1600x1100
8 Bit / 12 Bit
1x1
0.1ms~1h
MTR3CMOS01300KMA
1.3M/GLUX9701BSI(M,UV,RS)
1 ”(12.493x9.994)
9.76 x9.76
2.57x108 (e-/((W/m2).s))
QE89%@610nm
0.08(e-/s/pix) @-28C
30fps@1280×1024
30fps@640×512
8 Bit / HDR 16 Bit
1x1
2x2
0.1ms~1h
MTR3CMOS00500KMA
0.5M/GLUX1605BSI(M,UV,RS)
1 ”(12.8x9.6)
16.0 x16.0
6.4x108 (e-/((W/m2).s))
QE91%@550nm
50(e-/s/pix)
60.0@800x600
60.0@400x300
8 Bit / HDR 16 Bit
1x1
2x2
0.1ms~1h
型號
傳感器型號與尺寸
像素(μm)
G光靈敏度/暗電流
FPS/分辨率/位深度
采樣平均
曝光時間
