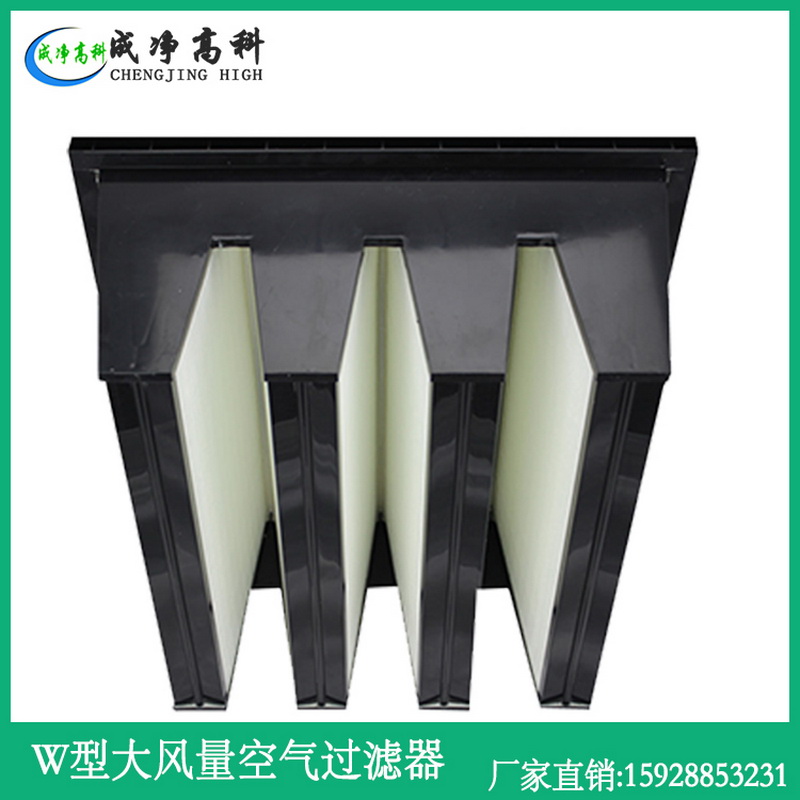

W型亞高效空氣過濾器
W type and efficient air filter
特點Features
●使用壽命長
●大風量、阻力低、容塵量大
●適用于大風量空調通風系統的中級過濾
●Long service life
●Large volume, low resistance and large amount of dust
●For large volume air conditioning and ventilation system of the intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：塑膠外框 ●分隔物：熱熔膠
●External frane：Plastic box ●Space: glue
●密封物：聚胺脂膠 ●濾料：玻纖濾紙或聚酯纖維（PP）
●Sealant：Gel-glue ●Filter media：Glass fiber filter or polyester fiber PP
●使用溫度、濕度：80℃、80% 以內 ●Use the highest temperature, humidity：80℃、 80%
型號尺寸及其他參數（Standard specification）
|
型號 model |
外形尺寸 Outside dimensions (mm) |
額定風量 Rated air flow (m3/h) |
初阻力 Imitial resistance (Pa) |
效率（比色法） Efficiency (%) |
濾料Filter materials |
|
CJ-H1-1 |
287×287×292 |
800 |
≤125 |
95(F8)/99(F9) |
聚酯纖維 Polyester fibers（PP） 玻璃纖維 Glass fiber |
|
CJ-H1-2 |
490×287×292 |
1200 |
≤125 |
95(F8)/99(F9) |
|
|
CJ-H1-3 |
490×490×292 |
2000 |
≤125 |
95(F8)/99(F9) |
|
|
CJ-H1-4 |
592×490×292 |
2000 |
≤125 |
95(F8)/99(F9) |
|
|
CJ-H1-5 |
592×490×292 |
2700 |
≤125 |
95(F8)/99(F9) |
|
|
CJ-H1-6 |
592×287×292 |
1600 |
≤125 |
95(F8)/99(F9) |
|
|
CJ-H1-7 |
592×592×292 |
2400 |
≤125 |
95(F8)/99(F9) |
|
|
CJ-H1-8 |
592×592×292 |
3200 |
≤125 |
95(F8)/99(F9) |
*可要據用戶要求定制不同規(guī)格型號的過濾器
According to user requirements to customize different specifications and types of filters
